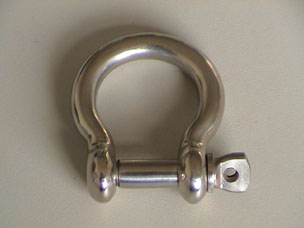

Stainless Steel Forged Bow Shackles:

Breaking load	Dia of bow	Dia of Pin	Inside width	Inside length	Width of bow	Weight per 100pcs
in kgs	mm	mm	mm	mm	mm	in kgs
750 1200 1750	4 5 6	4 5 6	8 10 12	16 20 24	14 17 21	1.0 1.8 2.8
3000 5800 7000	8 10 12	8 10 12	16 20 24	32 40 48	28 34 42	6.4 15 22.3
13250 20250 25000	16 19 22	16 19 22	32 38 44	64 76 88	56 66 77	55 97 146
32000 40000 50000	25 28 32	25 28 32	50 56 64	100 112 128	87 98 112	211 285 326

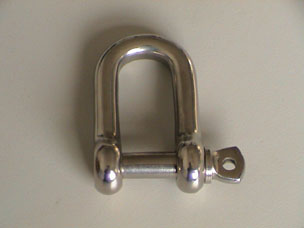

Stainless Steel Forged Dee Shackles:

Breaking load	Dia of bow	Dia of Pin	Inside width	Inside length	Weight per 100pcs
in kgs	mm	mm	mm	mm	in kgs
750 1200 1750	4 5 6	4 5 6	8 10 12	16 20 24	1.1 1.6 2.4
3000 5800 7000	8 10 12	8 10 12	16 20 24	32 40 48	6.6 13 20
13250 20250 26000	16 19 22	16 19 22	32 38 44	64 76 88	48 84 127
32000 40000 50000	25 28 32	25 28 32	50 56 64	100 112 128	184 250 372

U.S. TYPE LOAD RATED SHACKLES - Screw pin anchor shackles meet

Federal Specification RR-C-271a Type iv class 1.

                  ANCHOR SHACKLES-ROUND PIN-SCREW PIN Quenched & Tempered

Safe

Working

Load

Metric Tons

                                       DIMENSIONS in mm

Weight

Kgs

Each

   Size

Inside

Length

mm

Inside Width

    mm

     Diameter

       mm

Tolerance

Plus or Minus

in

mm

At Pin

At Bow

Pin

Outside of Eye

Length

Width

1/3

1/2

3/4

1

1-1/2

2

3-1/4

4-3/4

6-1/2

8-1/2

9-1/2

12

13-1/2

17

25

35

3/16

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

1

1-1/8

1-1/4

1-3/8

1-1/2

1-3/4

2

4.8

6.4

8

9.5

11.1

12.7

15.9

19

22.2

25.4

28.6

31.8

34.9

38.1

44.4

50.8

22

28

31

36

42

47

60

71

84

95

108

119

133

146

177

196

9

12

13

16

18

20

27

31

36

43

46

51

57

60

73

82

17

20

21

26

29

33

43

51

58

68

74

82

92

98

127

146

6

8

9

11

12

16

19

22

25

28

31

35

38

41

51

57

14

17

20

24

27

30

39

47

54

60

66

76

84

92

109

127

1.5

1.5

1.5

3

3

3

3

6

6

6

6

6

6

6

6

6

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

3

3

3

3

0.02

0.05

0.08

0.14

0.22

0.34

0.65

1

1.6

2.4

3.2

4.4

5.8

8

13

19

U.S. TYPE SCREW PIN CHAIN SHACKLES - Screw pin chain shackles meet

Federal Specification RR-C-271a Type iv class 2.

                       CHAIN SHACKLES-ROUND PIN-SCREW PIN Quenched & Tempered

Safe Working

Load

Metric Tons

                         DIMENSIONS in mm

Weight

Kgs

Each

    Size

Inside

Length

mm

Inside

Width

mm

     Diameter

        mm

Tolerance

     Plus or Minus

in

mm

Pin

Outside of Eye

Length

Width

1/2

3/4

1

1-1/2

2

3-1/4

4-3/4

6-1/2

8-1/2

9-1/2

12

13-1/2

17

25

35

50

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

1

1-1/8

1-1/4

1-3/8

1-1/2

1-3/4

2

2-1/2

6.4

8

9.5

11.1

12.7

15.9

19

22.2

25.4

28.6

31.8

34.9

38.1

44.4

50.8

63.5

22

26

31

36

41

51

60

71

81

90

100

112

124

146

171

203

12

13

16

18

20

27

31

36

43

46

51

57

60

73

82

105

8

9

11

12

16

19

22

25

28

31

35

38

41

51

57

65

17

20

24

27

30

39

47

54

60

66

76

84

92

109

127

152

1.5

1.5

3.1

3.1

3.1

3.1

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.3

6.4

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

1.5

3.1

3.1

3.1

3.1

3.1

4.4

0.05

0.08

0.13

0.19

0.31

0.55

1

1.4

2

3

4

5.5

7.4

11.3

16.3

41

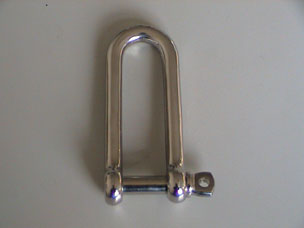

LONG D SHACKLE

TWISTED SHACKLE

size

weight /pc

pcs/carton

size

weight/pc

pcs/carton

4mm

5mm

6mm

8mm

10mm

12mm

0.01kgs

0.02kgs

0.04kgs

0.08kgs

0.16kgs

0.26kgs

1000pcs

800pcs

500pcs

300pcs

160pcs

80pcs

5mm

6mm

8mm

10mm

12mm

0.02kgs

0.03kgs

0.08kgs

0.15kgs

0.24kgs

1000pcs

800pcs

300pcs

150pcs

100pcs

　
